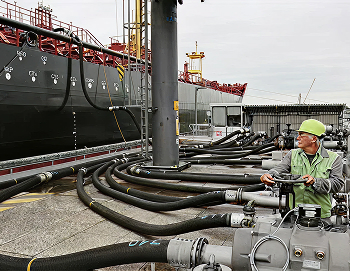

Custom rubber hand-built hoses are specialized hoses that are made-to-order for specific and demanding applications. Unlike mass-produced commodity hoses, these are crafted individually, with each layer of the hose carefully assembled by skilled technicians. This allows for a high degree of customization in terms of materials, construction, and dimensions. A wide range of rubber compounds can be used, including natural rubber, Neoprene, EPDM, Silicone, Nitrile, and specialized polymers depending on the application’s needs. Reinforcement materials, such as textiles, wire, or a combination of both, are incorporated to provide strength, pressure and vacuum resistance. Custom rubber hand-built hoses are used when a standard commodity product is not suitable or where the commodity is not producing sufficient life expectancy

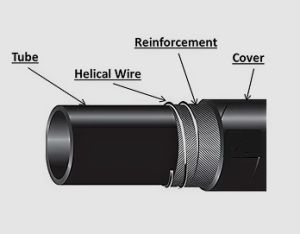

Hose Construction: Most hoses are made up of three elements: (1) a tube, (2) reinforcement, and (3) an outer cover. Each of these components is usually adhered to the adjacent components by bonding agents or thin layers of specially compounded rubber.
Built-In Fittings: Large bore hose is commonly manufactured with built-in fittings. The primary reason is that the fittings need to be attached to the hose body in order to withstand the end thrust pressures. Common types are built in nipple (BIN), built-in nipple flange (BINF), built-in rubber covered flange (BIRF) and beaded end with split ring flange (BE). Examples of each are shown in Figures 5-15 through 5-18
a) Ends 1. Threaded (type of thread) 2. Grooved 3. Beveled for welding 4. Integral flange.
(b) Flanges 1. Type (threaded, slip-on, welding neck, lap joint).
(c) Materials and dimensions 1. ANSI (or SAE International or ASTM International) composition and specifications
Crimped fittings:
Design Capabilities: Most every feature of a custom-made hose can be modified to meet your specific requirements.
Industries: Applications requiring custom-made hose can be found in nearly every industry.
Applications:Home Rubber’s custom-made hose products are well suited for applications that require special tube and cover compounds, large diameters and built-in fittings.
When selecting a hand-built hose it is critical to follow the STAMPED protocol which identifies the Size, Temperature, Application, Media, End fittings and Delivery to ensure the best solution.
